Flexible Shaft Coupling for Motor

As one of leading shaft clamp manufacturers, suppliers and exporters of mechanical products, We offer shaft clamp and many other products.

Please contact us for details.

Mail:sales@shaftclamp.top

Manufacturer supplier exporter of shaft clamp

Curved Jaw Couplings

The Curved Jaw couplings can be utilized in many applications and serve as an all-purpose coupling. The basic design of the Curved Jaw allows for al higher torque capacity in a compact design. The curved tooth has a greater contact area which gives it the high torque capacity, and reduces edge pressure. It will accommodate axial, radial and angular shaft misalignments.

The hubs are produced from a variety of materials including: aluminum, gray ,iron, steel, sintered steel, and stainless steel. The spider elements are available in various durometer options in Urethane & Hytrel. The spiders can perform under normal duty cycle conditions to heavy duty cycles which include shock loading and can minimize torsional vibrations in the system.

Coupling details

Specification

Model
Bore size (mm)
RatedTorque  (N.m)
MaxTorque(N.m)
Max speed
Outer Diameter (mm)
Length         (mm)
Bore Tolerance (mm)
HS -TCN-14C
3~7
0.7
1.4
45000
14
22
+0.6~0
HS-TCN-20C-R
4~11
1.8
3.6
31000
20
30
+0.8~0
HS-TCN-30C-R
6~16
4
8
21000
30
35
+1.0~0
HS-TCN-40C-R
8~28
4.9
9.8
15000
40
66
+1.2~0
HS-TCN-55C-R
9.5~32
17
34
11000
55
78
+1.4~0
HS-TCN-65C-R
12.7~38.1
46
92
9000
65
90
+1.5~0

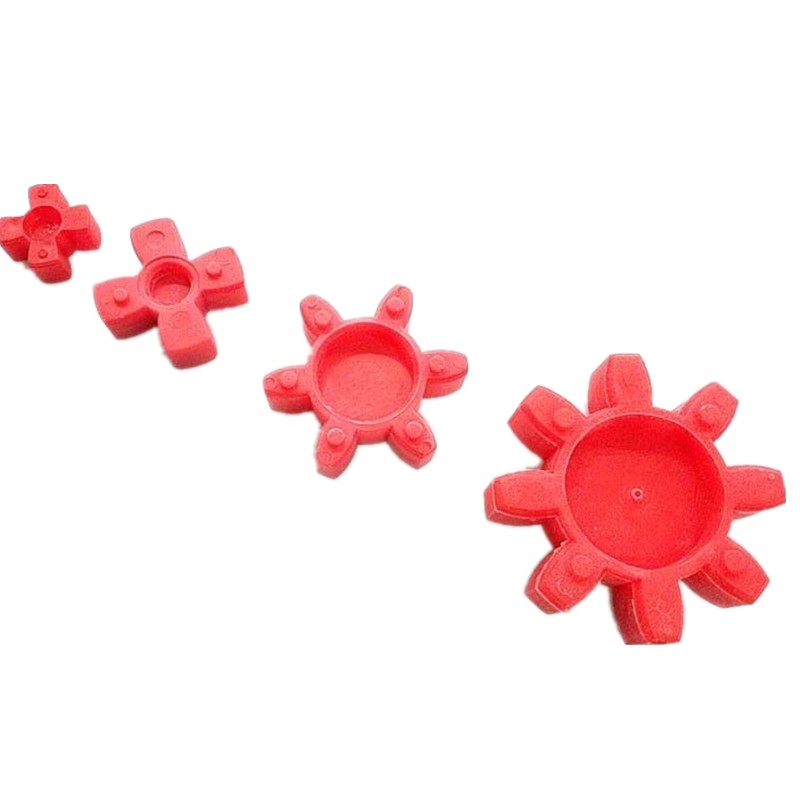

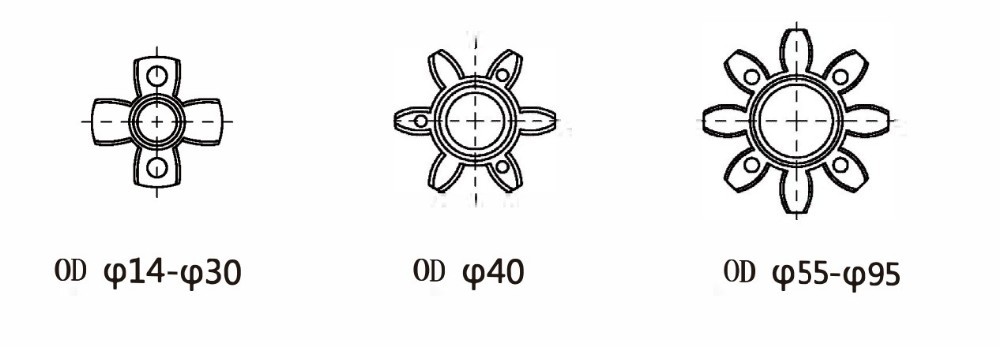

Spider Characteristics

The curved jaw coupling includes two metal hubs and an elastomeric “spider” element. The spiders are available in
different hardness durometers, each easily identified by its color.

Hardness
Color
Material
Temperature Range
Applications
80 Shore A
Blue
Polyurethane
-50 ~+80 .C
Excellent damping
92 Shore A
Yellow
Polyurethane
-40~+90  .C
Moderate damping, general applications
98 Shore A
Red
Polyurethane
-30 ~+90 .C
High torque applications
64 Shore D
Green
Polyurethane
-50 ~+120 .C
Higher torque, high temperature

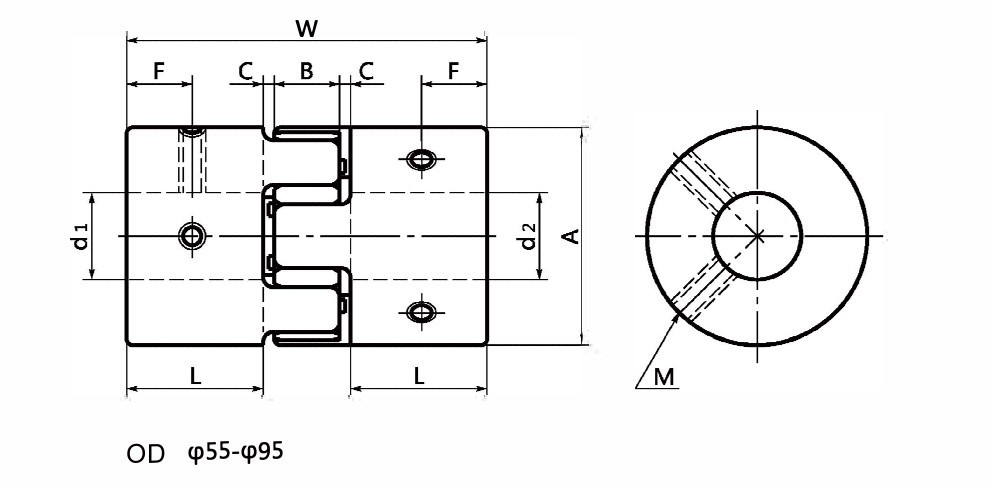

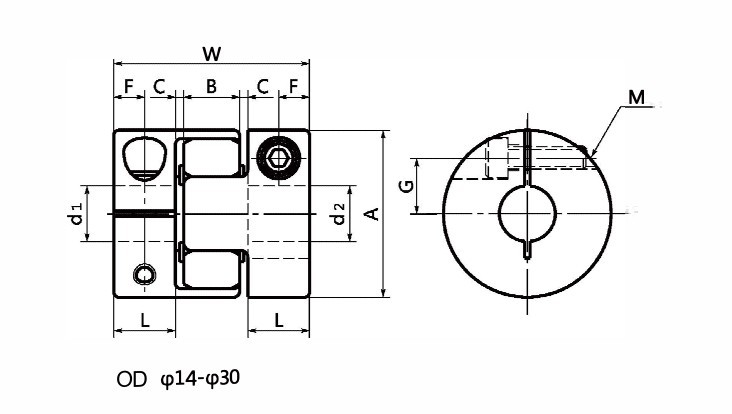

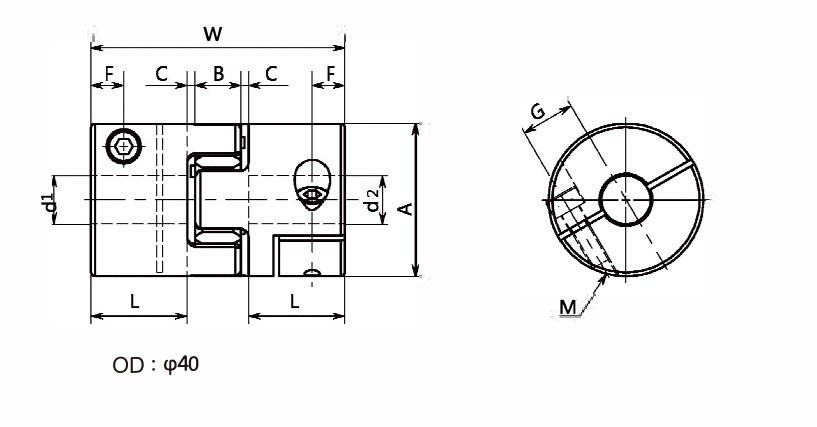

Coupling measure information

A
L
W
B
C
F
G
M
14
7
22
6
1
3.5
4/5
M2/M1.6
20
10
30
8
1
5
6.5/7.5
M2.5/M2
30
11
35
10
1.5
8.5
10/11
M4/M3
A
L
W
B
C
F
G
M
40
25
66
12
2
8.5
14/15.75
M5/M4
A
L
W
B
C
F
G
M
55
30
78
14
2
10.5
20/21
M6/M5
60
35
90
15
2.5
13
24/25
M8/M6

Application of Zero Backlash Elastomer Insert Elastic Jaw Flexible Shaft Coupling

CNC machine, CNC lathes, CNC machine center,

CNC milling machine ,engraving machine, metallurgical machinery, mining machinery,

petroleum machinery, Chemical Machinery, Hoisting Machinery,

Transport Machinery, water pump, Fan, etc



Advantage of Zero Backlash Elastomer Insert Elastic Jaw

Flexible Shaft Coupling

1.Elastomer connecting in the middle

2.Can absorb vibration, compensates for radial, axial and angular deviation

3.Oil resistance and electrical insulation

4.Have the same characteristic of clockwise and anticlockwise rotation



In addition to jaw couplings being considered fail-safe and all the other advantages already discussed above (damping capacity, chemical resistance, etc.), jaw couplings are considered maintenance-free as they do not require lubrication. Unlike gear, grid, or chain couplings that require periodic re-greasing… as long as the spider remains intact, the dog coupling will continue to operate without additional maintenance.

The traditional form of jaw coupling transmits torque through a compressed elastically flexible element (meaning the star leg is crushed). From an elastic element standpoint, this is preferable for torque transmission, as elastomers can generally take more punishment and load (including handling peak loads) when compressed (squeezed) than alternatives.. …this is shearing (being pulled or stretched).

Given that the claw coupling is widely accepted as the basis of industrial couplings, the ultimate benefit of this design is that there are now a large number of specialized claw coupling variants for almost every industry you can imagine. . Provide great design flexibility for equipment designers, maintenance engineers, etc.

Agknx Engineering offers a variety of jaw couplings that act as flexible couplings with an additional failsafe feature. Jaw couplings can be comprised of an elastomer or spider sandwiched between two hubs. These couplings are easy to install and provide a failsafe feature in their continued capacity to transfer torque in the event elastomer failure. For additional information about jaw couplings, contact our team directly.
